HOME > EXTERIOR SLIDE SYSTEM > LARGE SERIES CARRIAGES

LARGE SERIES - CARRIAGES

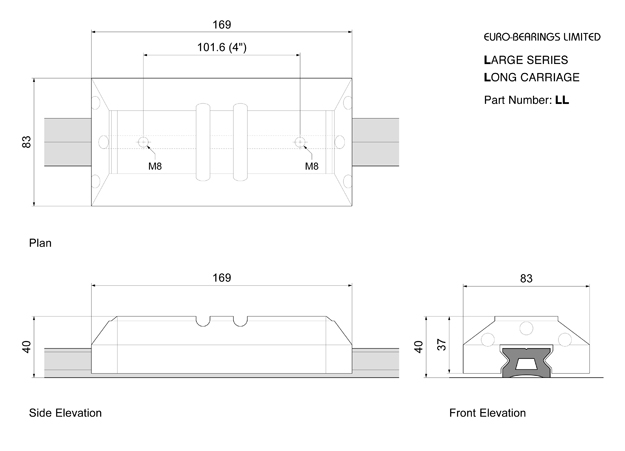

Scroll down for dimensioned drawings.

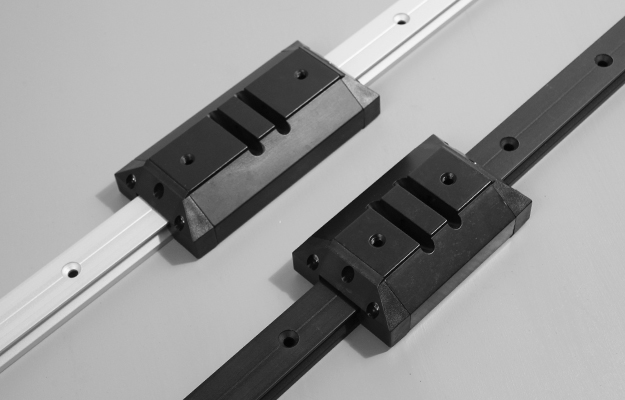

Both short and long carriages are available in this series and are designed to run on our LARGE series rail.

Load ratings: Short Carriage (LS) 900kg and Long (LL) 1300kg
