MEGI BARS:

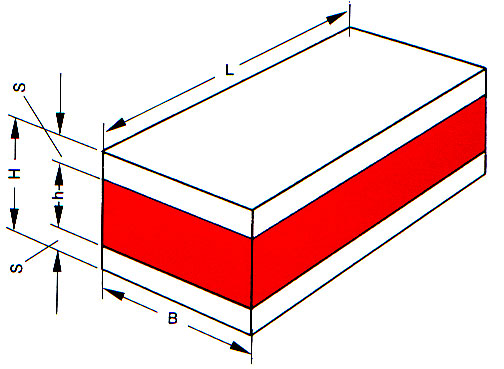

For large orders, these metal-rubber anti-vibration bars can be supplied with metal plates of a different thickness 's' and with a thinner rubber layer. Metal-rubber bars can also be supplied as impact plates, that is, with a metal plate on one side only, to meet special production orders.

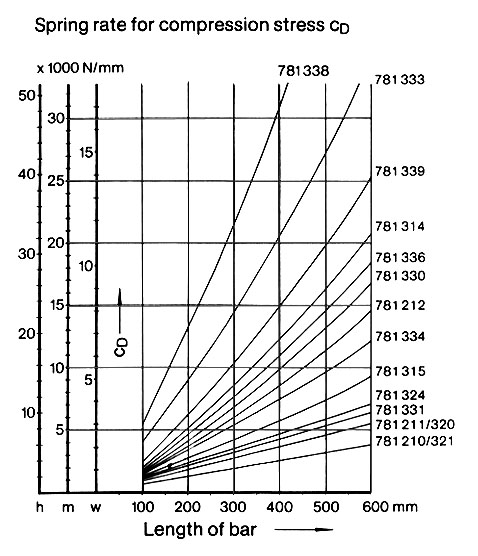

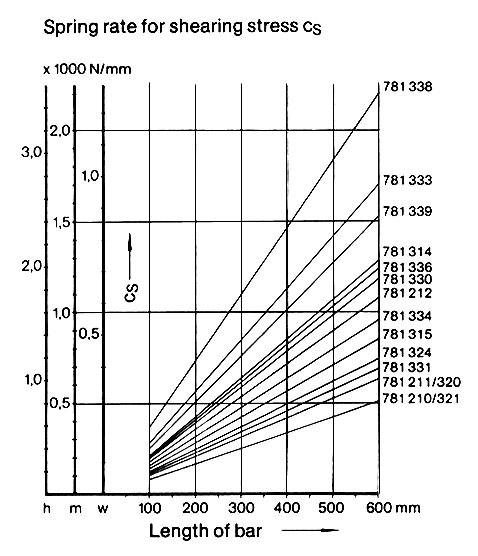

DIN 1017 applies to the metal parts. The appropriate thickness tolerances for Megi bars can be found in DIN 7715. Scroll down for loads charts.
Part Number |
B |
H |
h |
s |
Max length (mm) |
781211 |
25 |
30 |
20 |
5 |
700 |
781212 |
40 |
35 |
19 |
8 |
700 |
781314 |
50 |
40 |
20 |
10 |
700 |
781315 |
50 |
50 |
30 |
10 |
700 |
781324 |
60 |
60 |
40 |
10 |
700 |
781330 |
70 |
50 |
30 |
10 |
700 |
781333 |
100 |
60 |
30 |
15 |
700 |
781334 |
100 |
80 |
50 |
15 |
700 |
781339 |
150 |
80 |
50 |
15 |
700 |
